Description
Summary of Strawberry Growing System
Strawberries are vertically planted in greenhouses, which can significantly save greenhouse land, increase the usable area and space of the greenhouse, reduce pests and diseases, and facilitate daily management. It is a new modern strawberry cultivation technology.
1. The PVC planting trough is made of PVC pipes, with a thickness of 3-4mm, a top width of 210mm, a bottom width of 130mm and a height of 180mm. The planting trough can be mounted on a frame. The PVC trough comes in various sizes and can be customized by the buyer. The trough is 6m long and can be adjusted according to the length of the greenhouse.
2. The material of the planting trough frame: 25mm * 25mm hot-dip galvanized rectangular steel pipes, with a thickness of 1.5mm. The width of the frame is 1.4-1.6m and the height is 1.8-2.0m.
3. The planting is installed in 5-6 rows in a greenhouse with a span of 12m, evenly distributed; 3-4 rows in a greenhouse with a span of 8m, evenly distributed. One side is slightly higher and the other side is slightly lower to facilitate the discharge of waste nutrient solution.
4. The planting substrate can be a mixed substrate or coconut coir.
5. The irrigation and fertilization irrigation system includes a nutrient solution supply machine, water pipes, branch pipes and drip pipes. The machine can automatically control the EC value and pH value. The main water pipe is a polyvinyl chloride pipe.

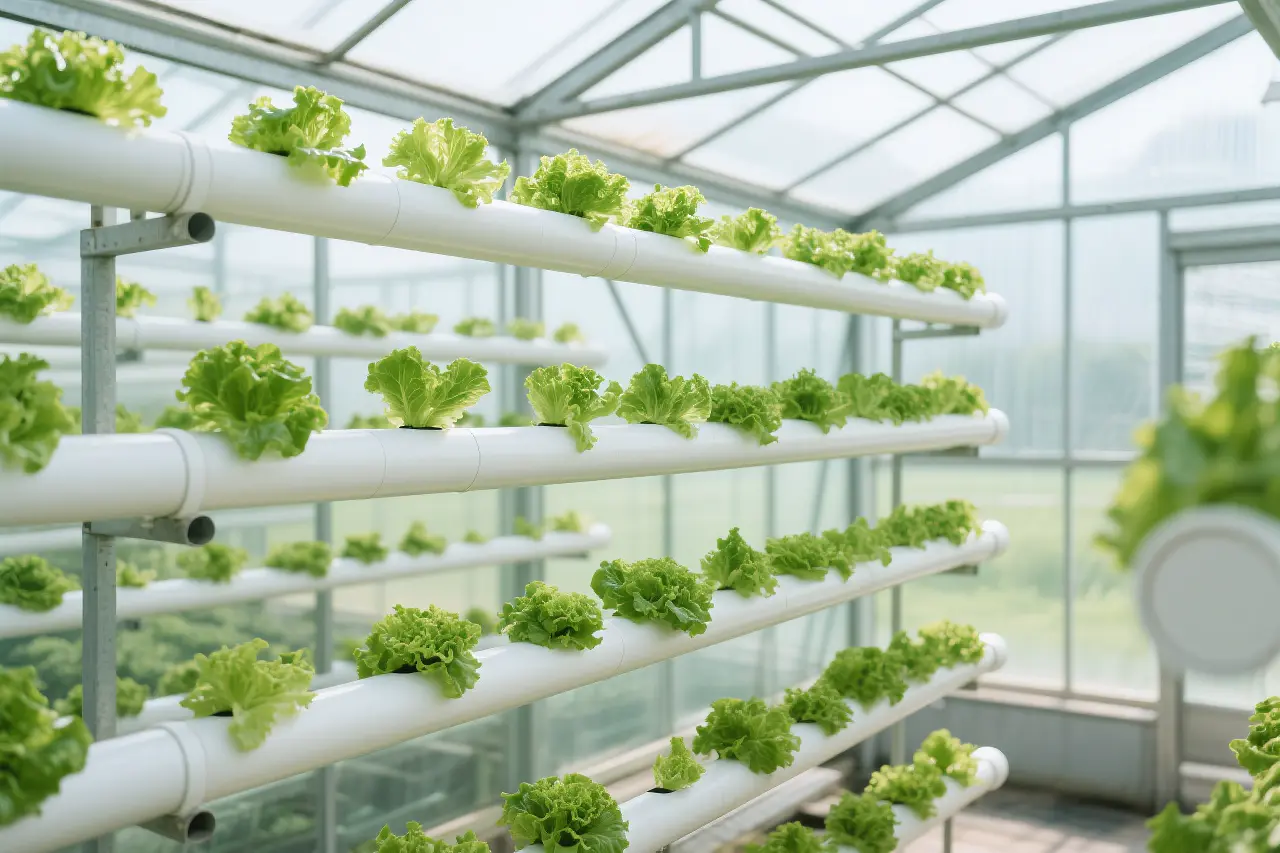

Hydroponic frame:
High-quality steel and hot-dip galvanized steel pipes have excellent anti-corrosion properties.
Main column: 100x50x2.5 millimeter hot-dip galvanized steel square tube
2. Secondary column: 50x50x2mm hot-dip galvanized steel square tube
3. Arch Tube: 32mm x 32mm hot-dip galvanized steel pipe
4. Lifespan: 15 - 20 years.
Advantages of hydroponics:
1. Saves land. We can grow plants anywhere, even on rooftops.
2. Saves 85% of water.
3. Saves labor.
4. Saves 80% of fertilizer.
5. Reduces pesticide use and is environmentally friendly.
6. High yield.
7. Products are harmonious. There is little waste.
8. Higher quality and safer.
9. All growth conditions can be controlled.
