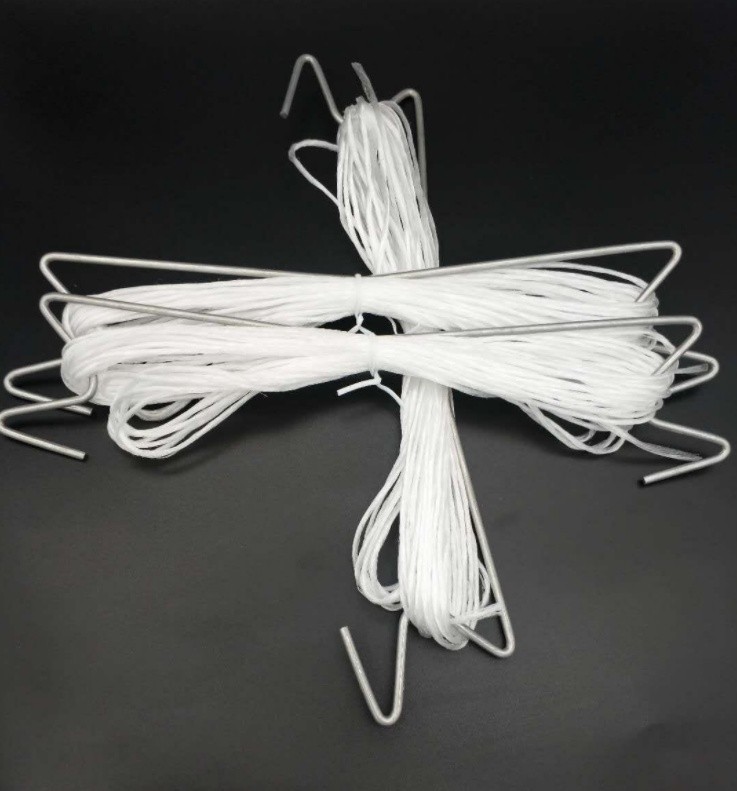

Vine Hanging Hook

  • Hanging Hook
  • Vine Hanging Hook
  • greenhouse vine hanging hook
  • utomatic threading vine hook
    • Sino-Dutch automatic vine hanging hook  , 15-18KG load-bearing vine hook  , anti-aging nylon rope vine hook  , greenhouse tomato cultivation tool  , reusable vine support hook
    Inquiry Send Email

    Description

    Detailed Specifications and Parameters

    Parameter Category
    Specific Specifications
    Core Performance Description
    Hook Body Material
    3mm Hot-Dip Galvanized Steel Wire + Hot-Dip Plastic Coating
    Corrosion and deformation resistance, in line with the standard of "Hook Technical Conditions" JB/T6406-2006
    Hanging Rope Configuration
    Imported Anti-Aging Nylon Rope, 7+3 Meters Automatic Threading Model
    Mesh structure, no damage to vines; elongation at break ≤30%; UV resistance
    Load-Bearing Capacity
    Rated Load-Bearing: 15-18KG
    Passed 1.25 times static load test, meeting the support needs of plants full of fruit ears
    Service Life
    Hook Body ≥5 Years, Hanging Rope ≥3 Years
    Stable operation in the hot and humid environment of the greenhouse, far exceeding ordinary vine hanging tools
    Installation Method
    Hook-Type Hanging, Adaptable to Greenhouse Truss Steel Wire
    No additional fixing accessories required, single plant installation can be completed in 10 seconds

    Standard Usage Process: Achieve Efficient Vine Hanging in 3 Steps

    1. Hanging and Fixing: Use an electric picking lift or ladder to hang the vine hanging hook on the greenhouse truss steel wire directly above the plant, ensuring the hook body is stable without shaking.
    2. Plant Fixing: Lower the hanging rope to 20 cm above the ground, and use a vine clamping clip to fix the hanging rope with the base vine of the plant (clamp it under the first true leaf) to avoid hurting the stem.
    3. Dynamic Adjustment: During the plant growth process, adjust the length of the hanging rope through the automatic threading function; when lowering the vine, open the locking slider, remove the old leaves at the bottom, and coil the vine to keep the plant at an appropriate height and continuously receive sunlight.

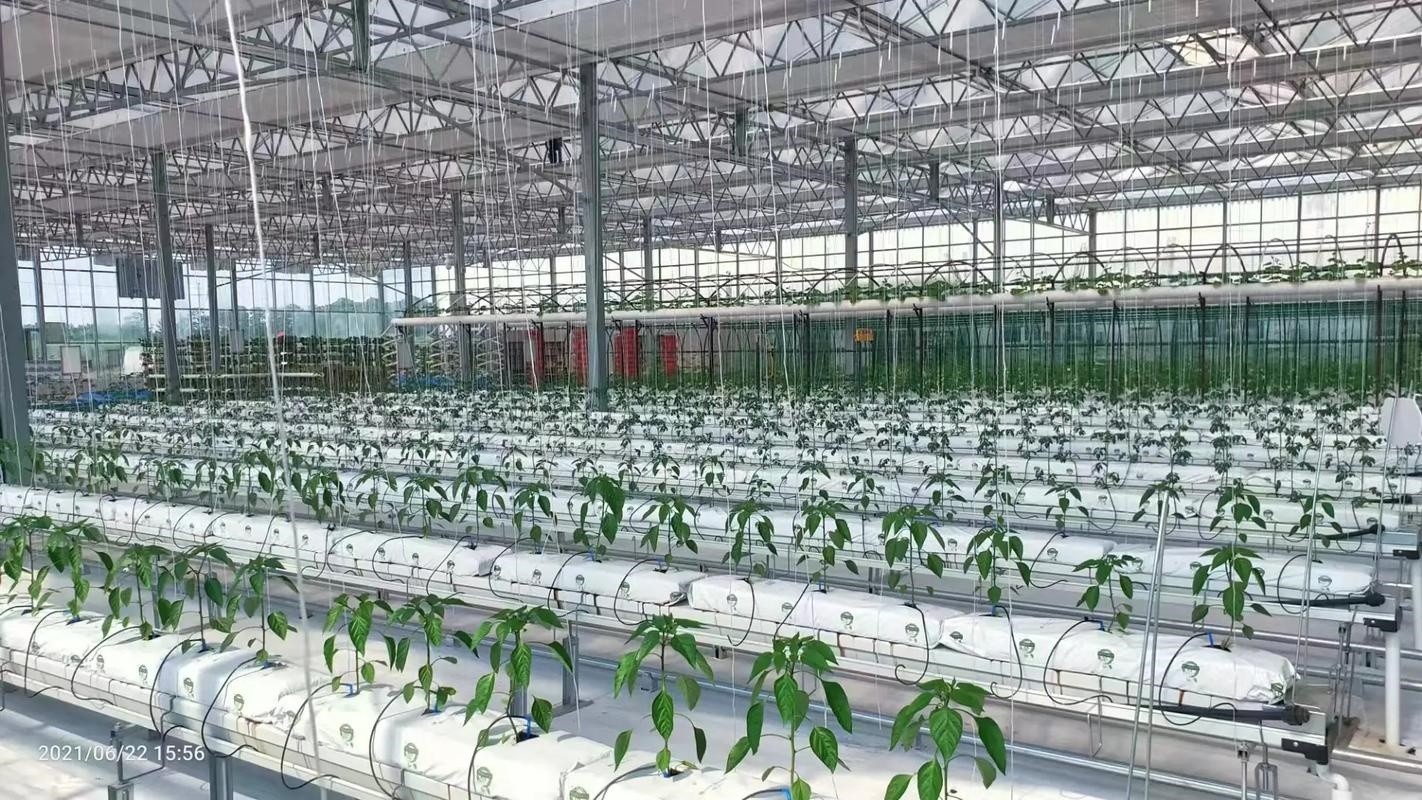

    Application Scenarios and Supporting Solutions

    • Core Applicable Crops: Tomatoes (especially long-season cultivation varieties), cucumbers, zucchini, green peppers and other vine or fruiting vegetables.
    • Adaptable Greenhouse Types: Large-scale facilities such as glass greenhouses, multi-span plastic greenhouses, and solar greenhouses, and can also be used in small greenhouses of home gardens and picking gardens.
    • Recommended Supporting Products: It is used with the same series of plastic vine clamping clips (for fixing vines) and fruit ear hooks (for supporting heavy fruit ears) to form a complete plant support system and further improve cultivation efficiency.
    Purchase Reminder: Some counterfeit products on the market use soft ordinary iron wire and low-quality nylon ropes, which are prone to rust and break. Although they seem cheap, they actually increase the cost of repeated purchases. This product has passed ISO9001 quality certification, and the hook body is printed with clear load-bearing marks and factory numbers, which can be used with confidence for a long time.
