Description

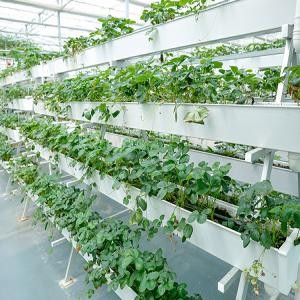

Hydroponic growing system in greenhouse

Hydroponic refers to plant roots in direct contact with nurient solution without substrate cultivation.

Hydroponic commercial system principle is making a very thin layer of nutrient solution, continue to cycle through the crop roots, not only to ensure a continuous supply of crop water and nutrient, but also to ensure a continuous supply of fresh O2.

NFT hydroponic cultivation makes irrigation technology greatly simplified and do not need to calculate crop water requirement, and it can get equilibrium of nutrient supply.

NFT hydroponic The isolation of root and soil, can avoid all kinds of soil become diseases not need to sterilize soil.

Hydroponic Advantages

1. Hydroponic system Save the water and land ;

2. hydroponic system Clean and sanitary

3. hydroponic system Labor saving, easy management ,Product harmony, little waste

4. hydroponic system High quality and more safety

5. Hydroponic system All the growing conditions can be controlled

6. Hydroponic system It is helpful to realize the agricultural modernization

Soilless Culture Details

1. The soilless system is used coconut coir as substrate.

There is nutrient solution supply machine, which can control the EC value and PH value automatically. Inside installs hanging pipe and hanging line.

2. Substrade: coconut coir

The parameter of coconut coir: biological and environmental, plenty of organic nutrients, retaining water and ventilating. PH value: 5.5-6.5 EC value≤600μs/cm

3. PVC planting trough

The planting trough is made of PVC pipe, thickness 3-4mm, the top width 180mm, bottom width 120mm and height 160mm.
The planting trough can be put on shelves, and also can be put on the ground or under ground. The PVC trough has many sizes, customized by you.

4.Planting Arrangement

Install 8-9 rows in the commercial greenhouse with 12m span, evenly distributed; install 5-6 rows in the commercial hydroponic greenhouse with 8m span , evenly distributed.
One side is a little high, and the other side is a little low for drainage of the wast nutrient solution. Install track between the two rowa for daily management and picking.

5.Irrigation and fertilization

The irrigation system is including nutrient solution supply machine, water pipe, branch pipe and drip nozzle.
The machine can be controlled EC value and PH value automatically. The main water pipe is PVC pipe.
