Movable Nursery Bench

commercial greenhouse nursery bench

greenhouse movable seedling bench

galvanized steel nursery bench

Description

Core Advantages: Redefining the Spatial Value of Greenhouse Seedling Cultivation

1. 30%+ Increase in Space Utilization, Doubling Seedling Capacity per Unit Area

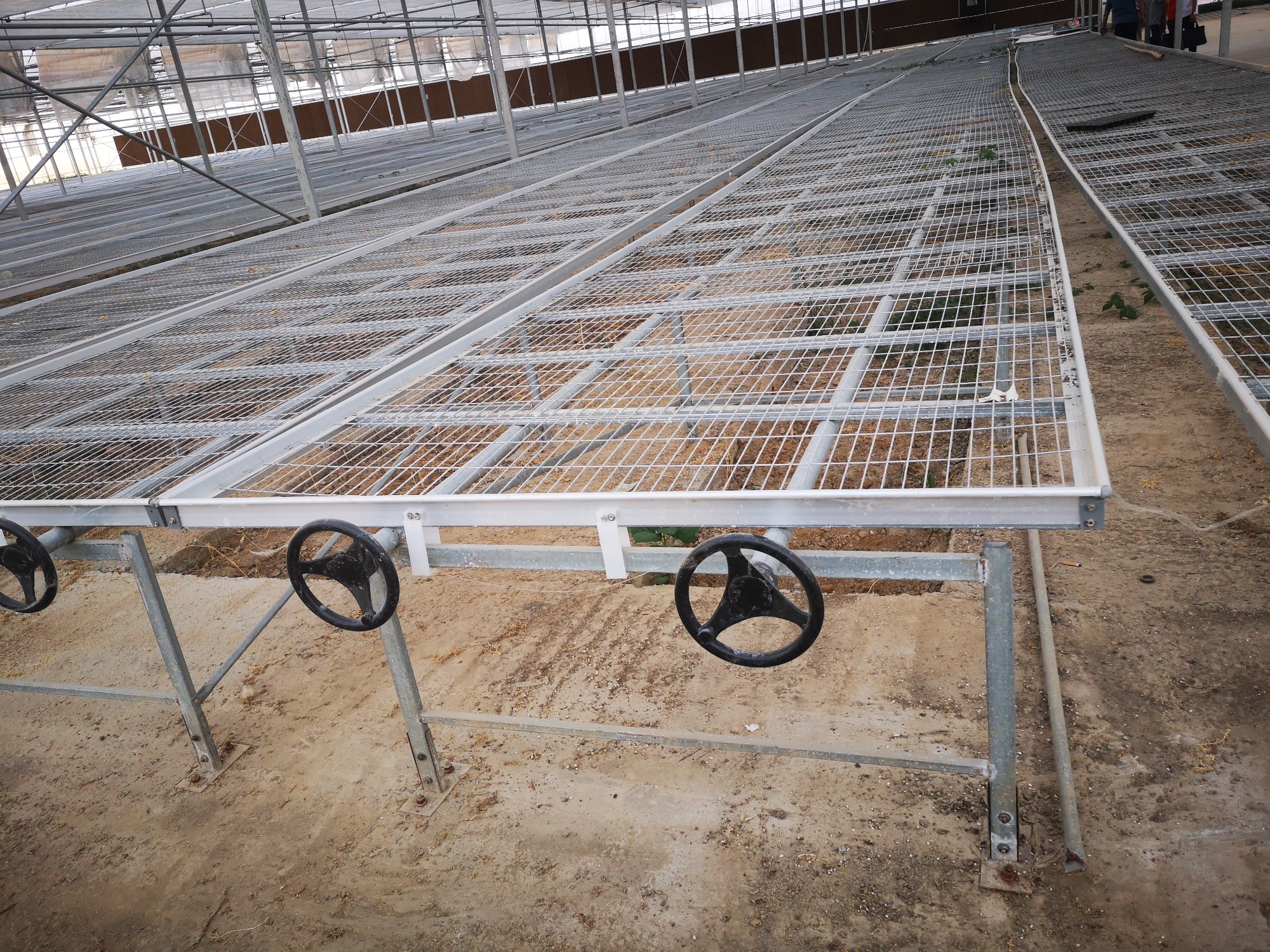

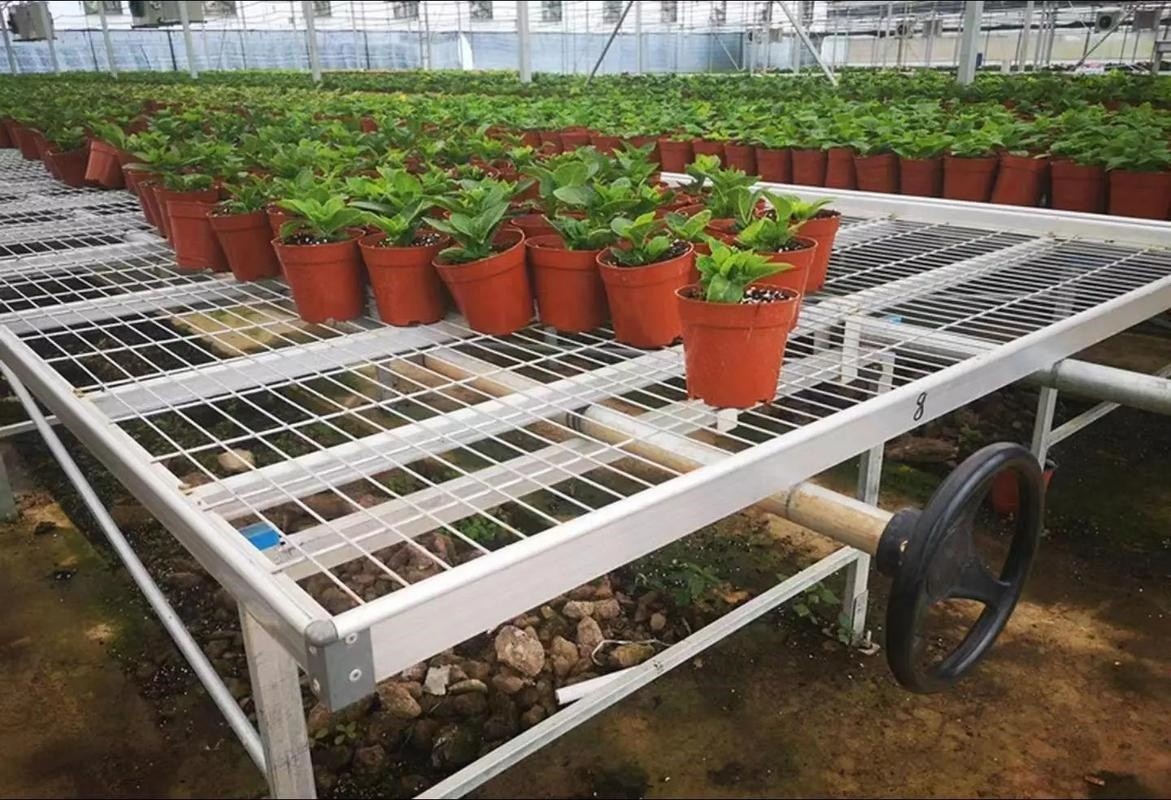

Traditional fixed nursery benches require a large number of permanent access passages, resulting in severe space waste. This movable nursery bench adopts a horizontal translation design, which can flexibly move 30cm left and right through a precision transmission system. Only one shared passage needs to be reserved to meet the operational needs of the entire area. Taking a greenhouse with a 9.6m span as an example, after configuring 6 sets of 1.45m-wide nursery benches (6 sets per span), the total coverage area of the benches can reach 8.7m, with only a 70cm-wide passage required. Compared with fixed nursery benches, the space utilization rate for seedling cultivation per unit area is increased by more than 30%, significantly increasing the total number of seedlings per greenhouse.

2. Stable and Durable Structure, Adapting to Multi-scenario Seedling Needs

The main body of the nursery bench is made of hot-dip galvanized steel pipes through welding, and its surface is treated with anti-corrosion technology, which can withstand the high-humidity and fertilizer-fog-rich environment in greenhouses, with a service life of more than 10 years. The bench surface is paved with high-strength galvanized steel wire mesh or perforated steel plates, and the mesh size is compatible with various seedling trays (50-hole to 200-hole universal). It has excellent air permeability and water permeability, preventing seedling roots from rotting due to water accumulation. At the same time, the bench has stable load-bearing performance, capable of bearing 80-100kg per square meter, which can meet the weight requirements of substrates, seedling trays, and irrigation equipment during the seedling stage, and is suitable for seedling cultivation scenarios of various types such as vegetables, flowers, strawberries, and nursery stocks.

3. Intelligent Synergy and Compatibility, Creating an Automated Seedling System

The design of the nursery bench fully considers the automated upgrading needs of modern greenhouses and can seamlessly cooperate with equipment such as spray irrigation robots, fully automatic seeding machines, and seedling transfer vehicles. The bench reserves positioning interfaces; when used with a suspended spray irrigation robot, it can accurately connect to the irrigation path to realize cross-span mobile irrigation. When linked with an automatic seeding machine, the seeded seedling trays can be directly transferred to the bench, reducing intermediate handling links. In addition, the bench can be flexibly combined according to the greenhouse span, height, and seedling scale, and is suitable for single-span small greenhouses to multi-span large-scale seedling bases.

Core Parameters: Accurately Matching Your Greenhouse Needs

Parameter Category	Specific Specifications	Remarks
Bench Width	1.2m/1.45m/1.5m	Customizable on demand
Translation Distance	30cm each side (adjustable)	Meets personnel passage needs
Main Material	Hot-dip galvanized steel pipe (wall thickness 1.5-2.0mm)	Anti-corrosion and anti-aging
Bench Surface Material	Galvanized steel wire mesh/perforated steel plate	Good air permeability, water permeability and load-bearing capacity
Single Bench Length	Matching greenhouse span (up to 40m in maximum)	Segmented design available for multi-span greenhouses
Transmission Method	Manual/Electric (optional)	Electric version supports remote control operation

Applicable Scenarios: An Ideal Choice for Full-category Commercial Seedling Cultivation

Large-scale Vegetable Seedling Bases: Suitable for plug seedling cultivation of vegetables such as tomatoes, cucumbers, and peppers, improving the efficiency of seedling management;
Flower and Nursery Stock Seedling Greenhouses: Meeting the intensive cultivation needs of succulents, herbaceous flowers, and ornamental nursery stocks, reducing seedling damage;
Strawberry/Berry Seedling Centers: Cooperating with germination chambers and seeding machines to realize standardized cultivation of strawberry seedlings and ensure the survival rate of field planting;
Research and Seedling Laboratories: Precisely controlling the seedling space, facilitating variety experiments and growth observation.
