  • Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato
  • Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato
  • Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato
  • Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato
Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato

Galvanized Steel Frame Glass Greenhouse for Cucumber and Tomato

  • Glass Greenhouse
  • Cucumber Greenhouse
  • Tomato Greenhouse
  • Galvanized Steel Frame Greenhouse
  • Inquiry Send Email

    Description

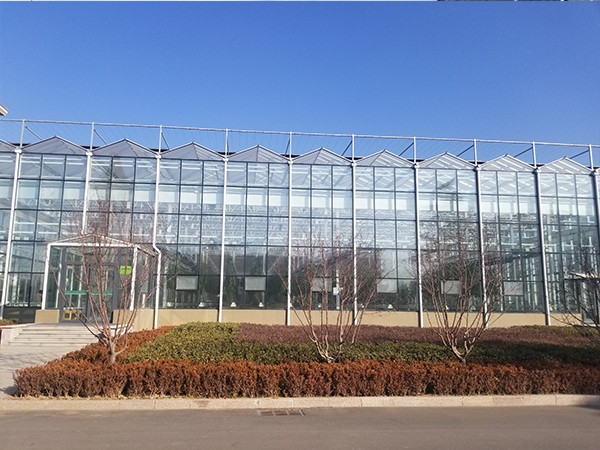

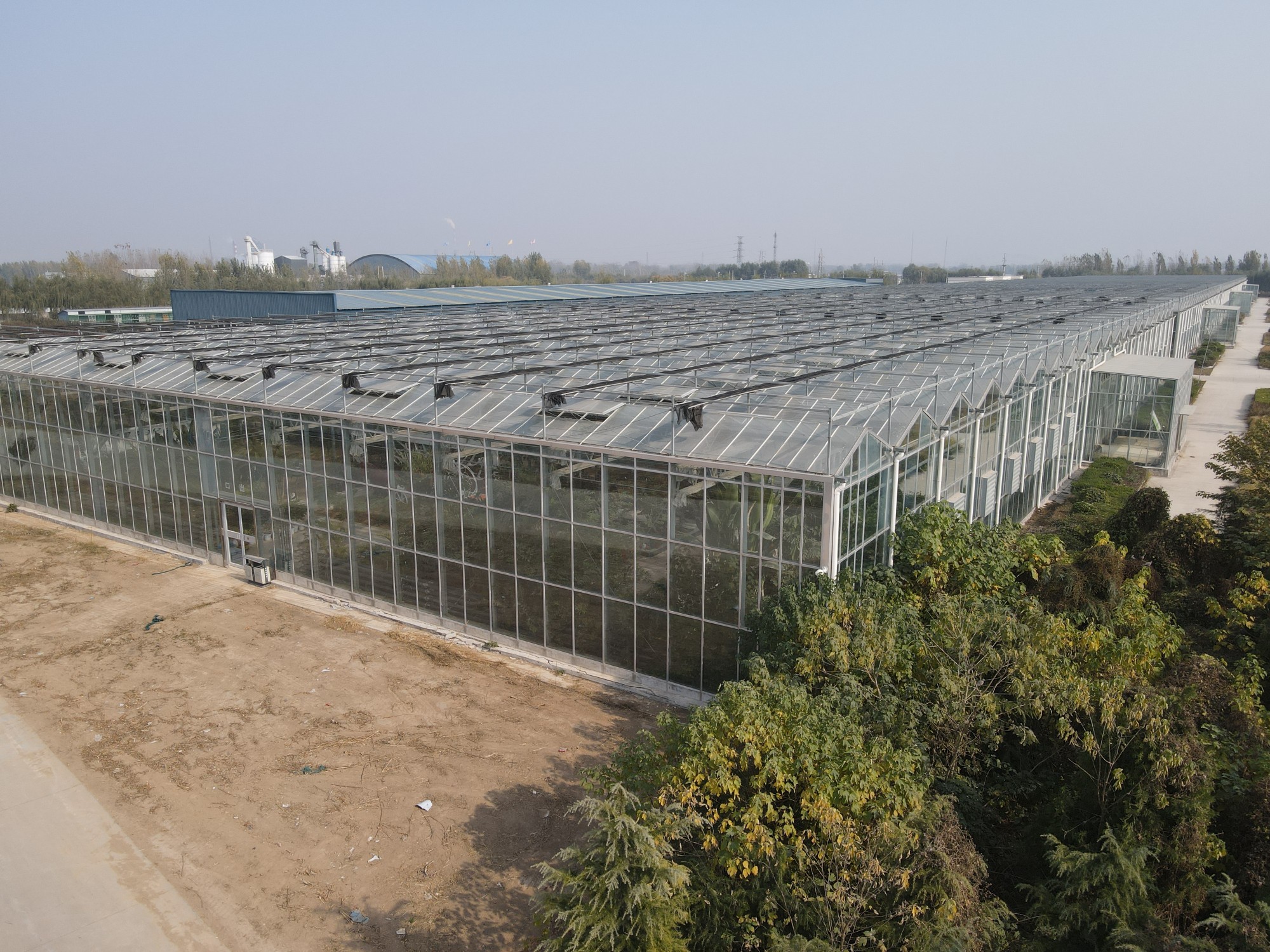

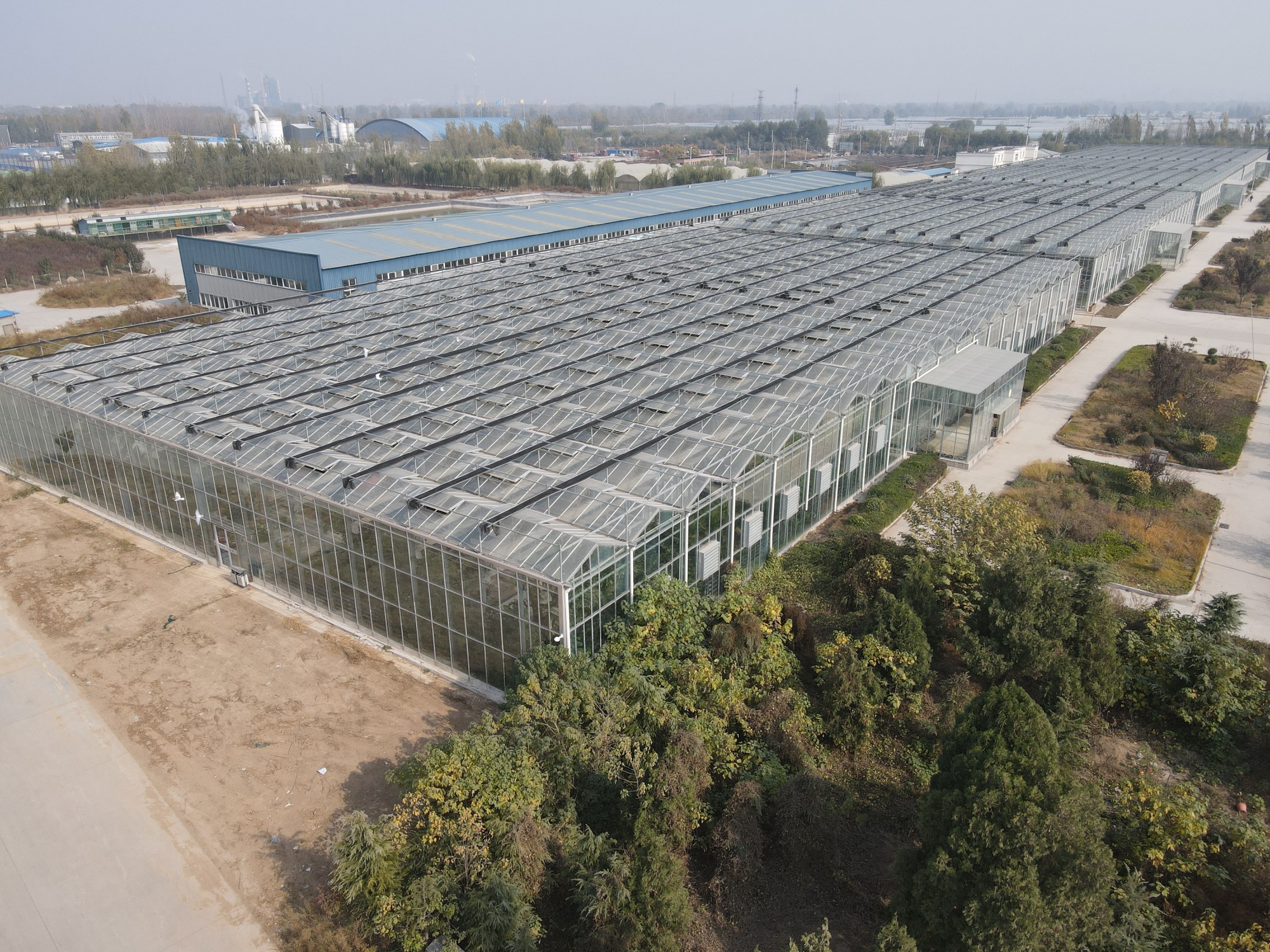

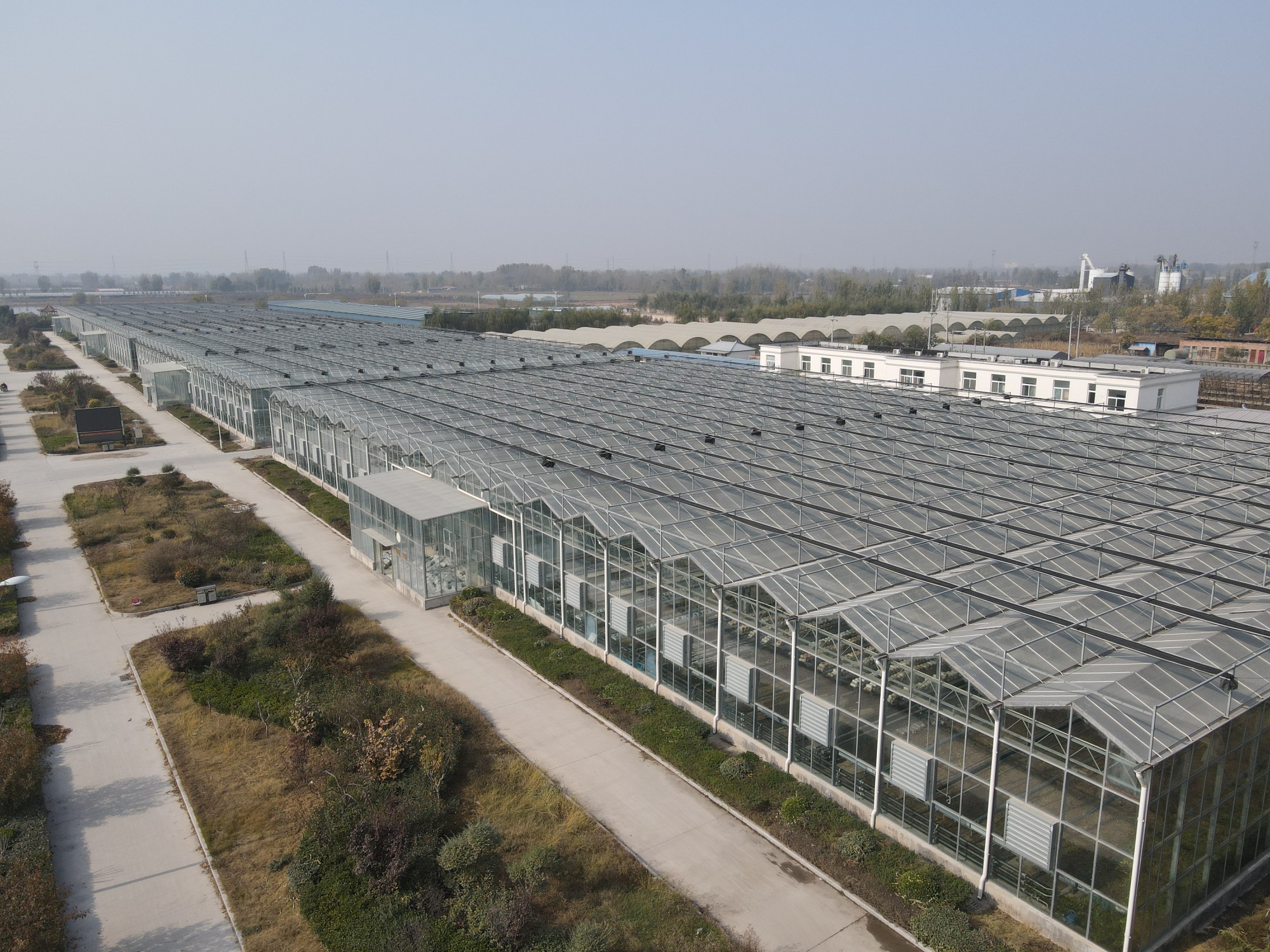

    Glass greenhouse is a type of greenhouse covered by glass as lighting materials, which belongs to a kind of greenhouse and in cultivation facility, the glass greenhouse has the longest life, which is suitable for use in a variety of areas, and all kinds of climate conditions.
    The size of the glass greenhouse is generally: span 12 meters, 8 meters, 9.6 meters. The bay width is 4 meters or 8 meters. The height of the rain gutter is 3 meters to 6 meters. the size can customized.
    Features of glass greenhouse: 1. The glass greenhouse has a good light transmittance, the light transmittance of the top single-layer glass is greater than 90%, and the light transmittance of the surrounding hollow glass is greater than 80%. 2. Good anti-condensation performance, no water vapor, good anti-aging performance. 3. The lighting area of the greenhouse is large, the indoor lighting is uniform, the interior is spacious and bright, and the utilization rate of the greenhouse is high. 4. The shape is beautiful, and it is ornamental.
    Specification

    Greenhouse system
    Description of the system
    Steel structure
    All steel structure hot galvanized
    Greenhouse cover
    glass
    Size
    customized
    Type
    Multi-Span Agricultural Greenhouses
    Inner sunshade system
    Reduce the temperature
    Inner thermal system
    keep greenhouse warm
    Cooling system
    cooling fan and cooling pad
    Heating system
    boiler /electric fan/heating fan
    hydroponic system
    for tomato/cucumber/strawberry/flowers

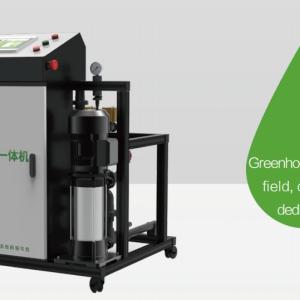

    water and fertilizer machine
    for vegetable and flower
    movable seedbed
    for nursery
    insect net
    high quality polyrthelene
    electric control system
    control all the system in greenhouse
    Optional system
    Cooling System.irrigation System.ventilation.etc
    Product parpamenters

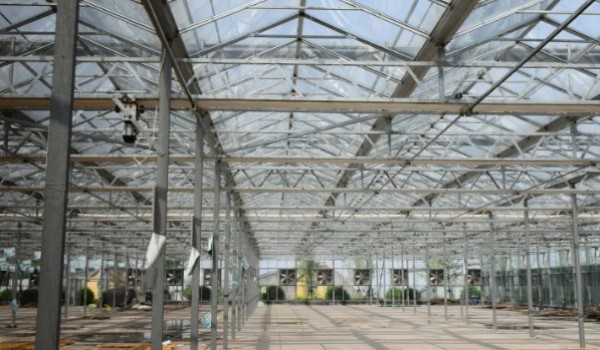

    Hot Galvanized Steel Structure

    The steel structure is made of high quality carbon steel with inside and outside hot galvanized layer which will be not less than

    60um.

    Most connections of greenhouse structure are installed directly by screws or Self tapping screws.

    The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.

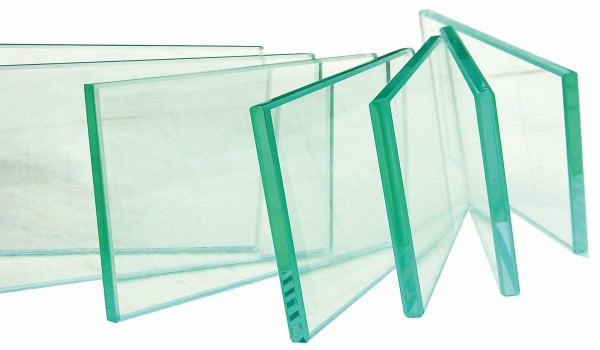

    Cover material
    Name: hollow glass
    Thickness: 4-5mm
    In the greenhouse top, usually use the single layer glass, the both side usually use double layer glass to keep warm.Glass is tempered glass,It has good mechanical properties and thermal shock resistance, and can withstand huge temperature differences without breakage.
    After the tempered glass is subjected to strong damage, it will quickly form small obtuse particles to maximize personal safety

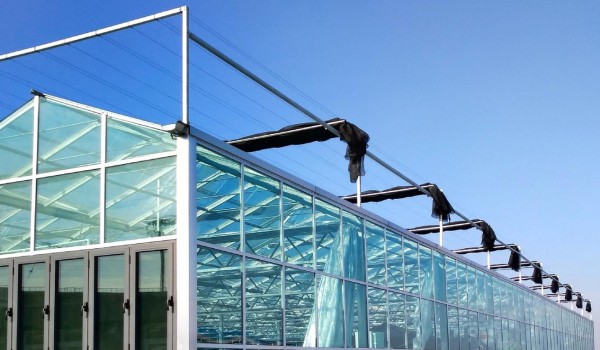

    Outer Sunshade System
    In the summer when indoor temperature rise to a certain value, it can reflect a part of the sun and diffuse sunshine into the
    greenhouse according to the different shading rate, achieving the purpose of cooling temperature. Close sunshade screen, at the
    same time the greenhouse temperature drop 4 ~ 6℃, reduce temperature in the greenhouse. By choosing different shading rate
    curtain, it can meet the sunshine demand of different crops.

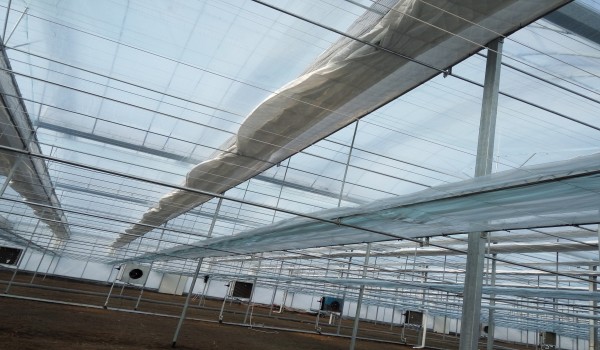

    Inner Sunshade&Warming System
    This system is installing inner sunshade net in the greenhouse.In summer, it can reduce the inner temperature, and in winter and
    in night, it can prevent the heat running off. It has two types, ventilation type and thermal insulation type.

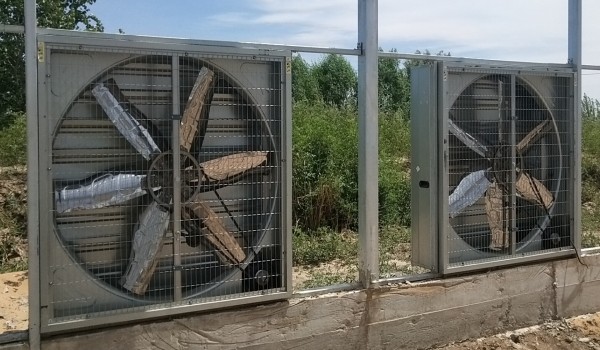

    Cooling Fan
    Introduction:The pads and fans are used together to realize the functions of cooling and ventilation.
    Size:Exhaust Hammer Fans in 1380*1380*400mm with wind volume 44000m3/h
    Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at
    same time.

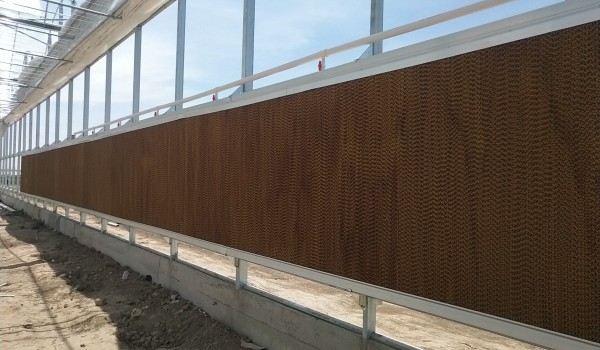

    Cooling Pad
    Introduction:The pads and fans are used together to realize the functions of cooling and ventilation.
    Size:Aluminum frame, height is 1.5m with thickness 150mm
    Advantage:In hot weather, using cool water circulation could reduce temperature and increase humidity inside the greenhouse at
    same tim

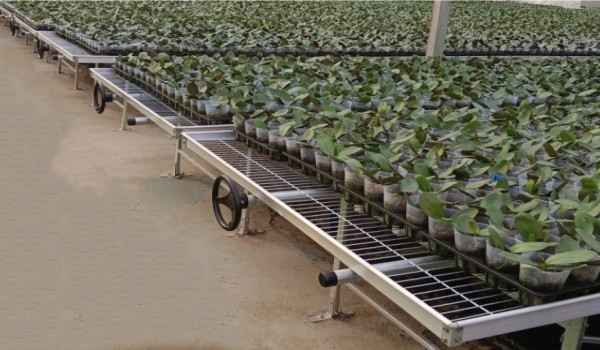

    Movable seedbed
    Movable seedbed features:
    1. Manual drive, easy to move. The seedbed frame is made of aluminum alloy, the steel pipe and seedbed net of the support part
    are hot-dip galvanized, which can be used for a long time in a humid environment.
    2. Can move 35 cm left and right. Can let greenhouse use area reach 80%

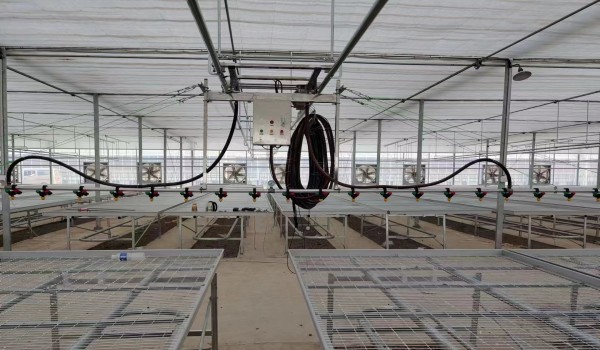

    sprinkler irrigation
    For automatic mobile sprinkler irrigation machines, usually each greenhouse set one
    working track, and one machine can irrigate more than 2,000 square meters of greenhouse. If one machine used in multiple
    greenhouses, transfer equipment and transfer tracks are
    required.


    Coconut Coir Hydroponics
    Coconut coir hydroponics is one of substrate cultivation, most widely used soil-less culture mode in the world.
    As the most ideal organic culture medium at present, It has the advantages of excellent air-water ratio and bulk density,
    renewable and sustainable.
    The cultivation cost is low than others, with small investment very suitable for large-scale popularization and use, producing
    vegetables with good quality and high yield.

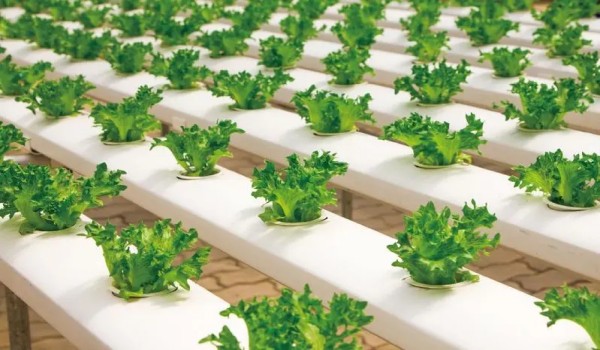

    NFT Hydroponics
    NFT Hydroponics belongs to one kind of nutrient solution hydroponics by using PVC pipes which is more suitable for leaf vegetables
    cultivation.
    All pipes and pipe fittings are made by high quality PVC in food grade, it's very safe, non-toxic, and non-polluting, without any
    damage to plants.
    The shelf and pipes sizes can be customized according to the actual needs.

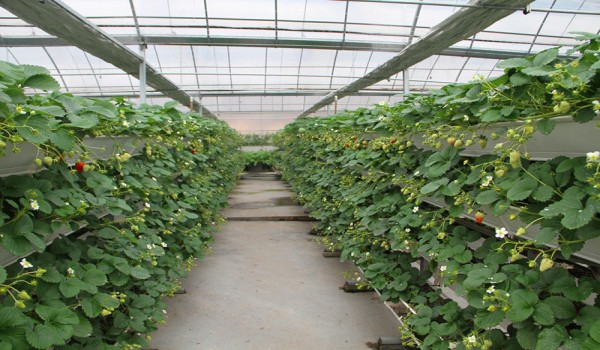

    A-type Hydroponic System
    The strawberry grow gutter is a type of vertical soilless culture for strawberry.
    The gutter shelf is usually A-frame 4-layer structure, or hanging structure, first install and fasten the gutter.
    Cover the gutter with the substrate, use drip irrigation system work for it

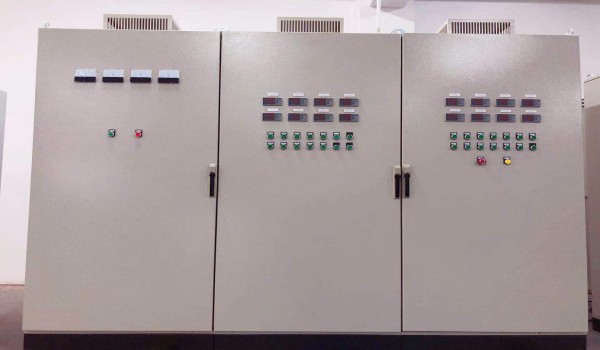

    Electric Control System
    The electric control system is used for control all the mechanical equipment installed in the greenhouse to realize the greenhouse
    microclimate control.
    The system includes one set of control cabinet, cablesand accessories and tools.
    It can realize the automatical control of water heaters and cooling system to save energy.
